Catalogue variants
Power configurations shown
- Air cooled: 200 / 300 / 500 / 1000 W

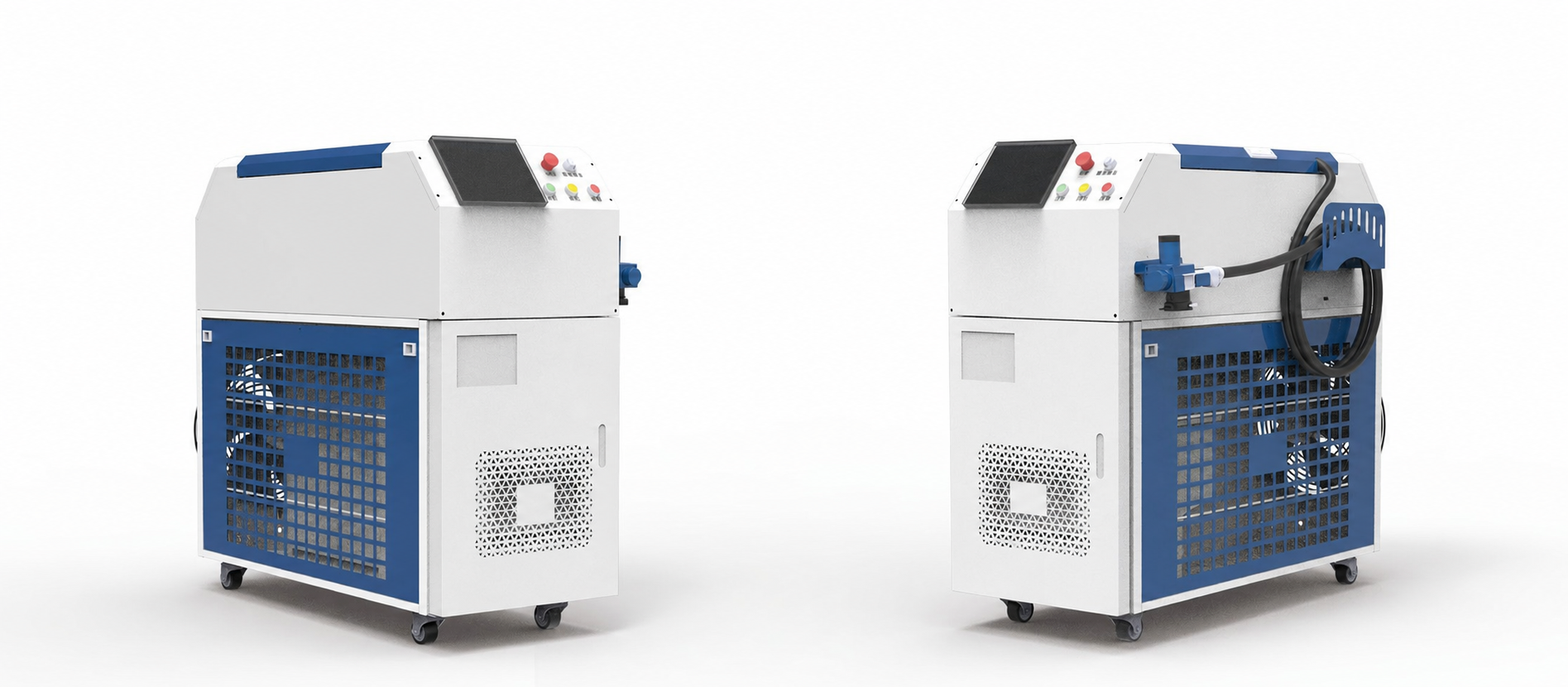

- Water cooled: 500 / 1000 W
Precision pulsed configuration
Top-Hat Pulse Laser Cleaning Machine
A pulsed configuration range for technical cleaning-process evaluation. Select cooling, cable and beam configuration around the actual part, contaminant and required finish.
Back to Pulse laser cleaning
Selection context
Start with the cleaning condition, then configure the machine
Top-hat pulse laser cleaning machine with 200–1000 W air-cooled and 500–1000 W water-cooled catalogue configurations.
- Detailed parts and defined surface-preparation zones
- Jobs that need beam and process configuration review
- Applications where sample testing determines the suitable setup
Technical parameters
Technical Data
These are values visible in the supplied catalogue. Optional equipment, final electrical requirements and the final application scope are confirmed during quotation.
| Operating mode | Pulse |
|---|---|
| Laser source | Pulsed fiber laser |
| Scanning field | 0–100 mm (F160 field lens) |
| Focal-length options | 100 / 160 / 254 / 330 / 420 mm |
| Fiber cable | 5–10 m, depending on catalogue configuration |
| Cooling | Air-cooled and water-cooled catalogue configurations |
Catalogue configuration context
Use the listed configuration as an evaluation starting point
Pulsed configurations in the catalogue are intended for controlled, defined cleaning zones. The suitable power, cooling, field lens and cable arrangement depend on the actual part rather than the product name alone.
The supplied English catalogue lists this configuration on source pages 17, 19. Values shown above are catalogue references for the listed variants. Final suitability, installation requirements and process results remain subject to application review and quotation confirmation.
Project handover
Turn a catalogue option into a documented project scope
Before an order is finalized, record the tested material, contamination or coating, work area, access, intended process settings and the downstream acceptance requirement.
This prevents a catalogue power range or machine format from being treated as a universal cleaning-result promise. Where the result supports coating, welding, bonding or inspection, include that next process in the sample-test or acceptance discussion.
Configuration review
Confirm the configuration against the real part
Send the material, contaminant, dimensions and required next process. LaserLuma will use those details to discuss a practical configuration or sample-testing path.
